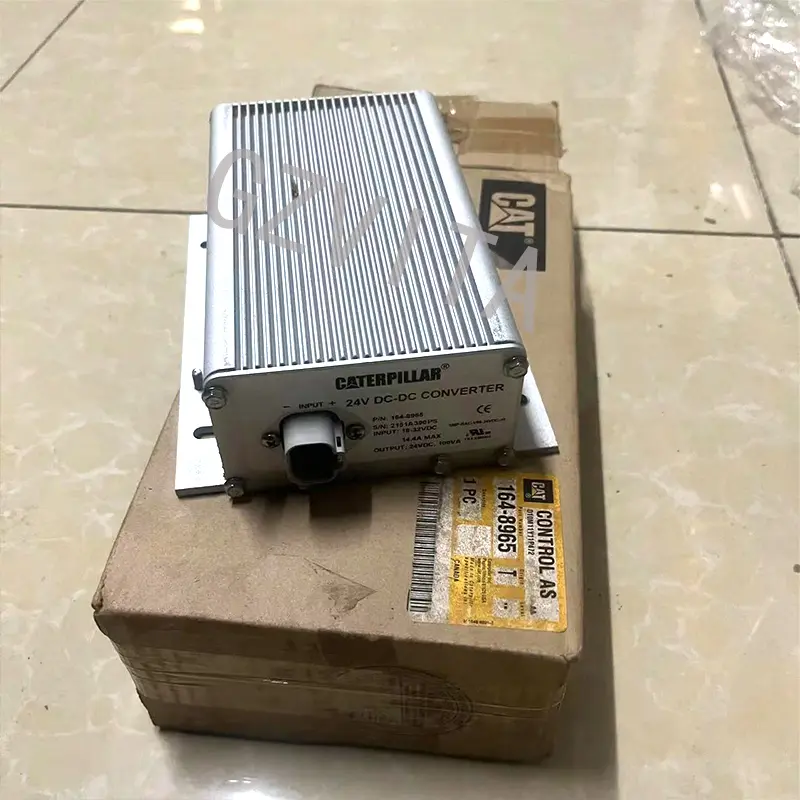

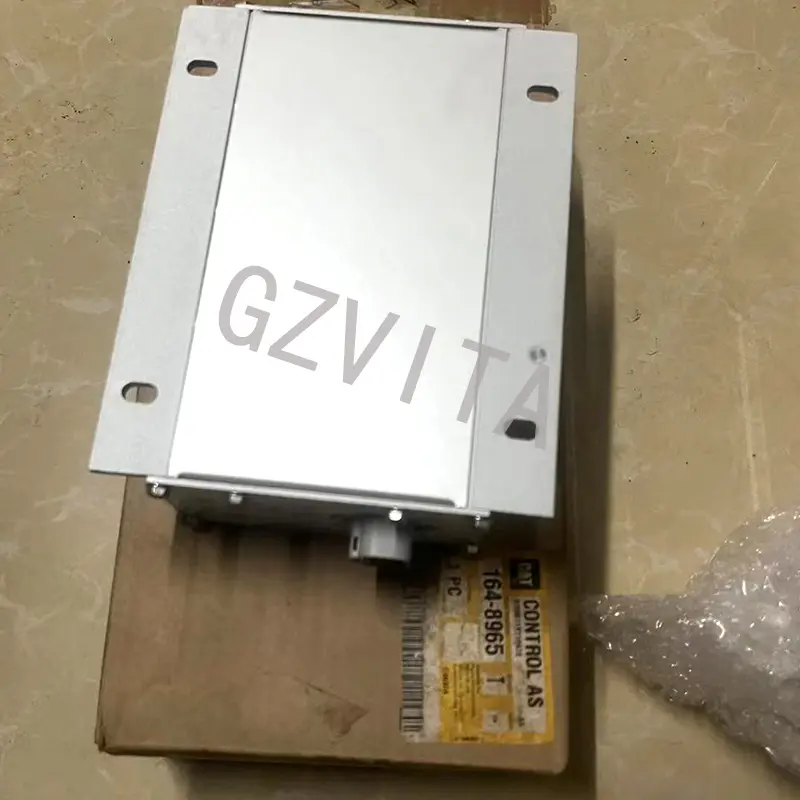

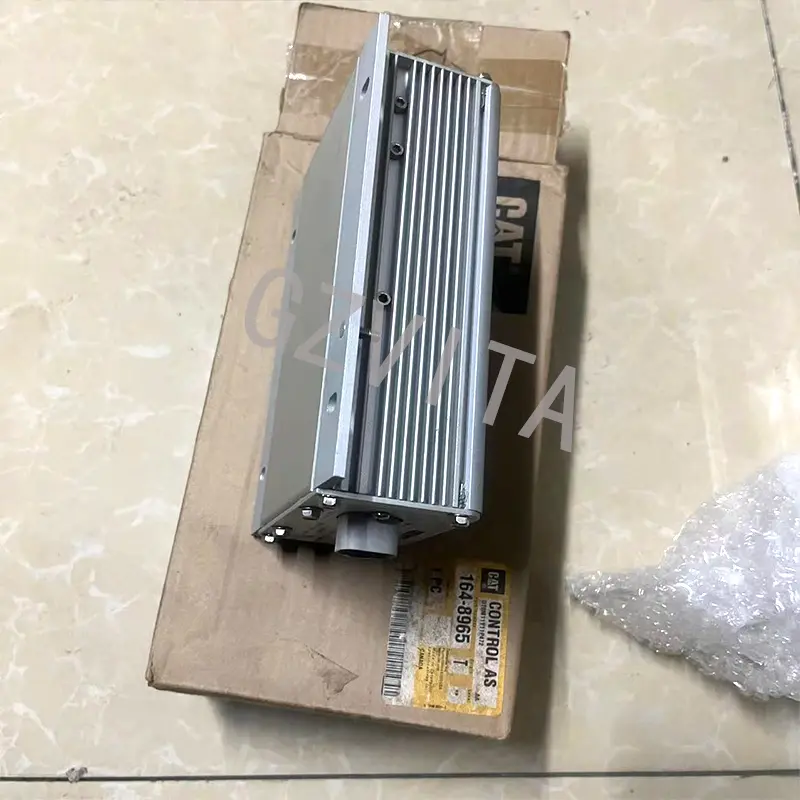

CAT Genuine Control AS 164-8965 For Truck 794AC 1648965 SR4B

Assembling the Control AS (Control Assembly) for a CAT truck is a critical task that requires attention to detail and adherence to safety protocols. The Control AS is responsible for managing various functions of the truck, including engine performance, transmission control, and other essential systems. Below is a general guide on how to assemble the Control AS for a CAT truck. Please refer to the specific service manual for your CAT truck model for detailed instructions and specifications.

Torque wrench

Screwdrivers (flathead and Phillips)

Socket set

Pliers

Clean cloths

Assembly lubricant (if specified)

Safety gloves and goggles

Assembly Steps

Preparation:

Ensure that you are working in a clean, well-lit environment.

Gather all necessary tools and materials.

Review the service manual for your specific CAT truck model to understand the assembly requirements and torque specifications.

Before assembly, inspect all components of the Control AS for any signs of damage or wear. Replace any damaged parts as necessary.

Assemble the Base Plate:

Start by securing the base plate of the Control AS to the designated mounting location on the truck chassis. Use the appropriate bolts and ensure they are tightened to the specified torque.

Install the Control Module:

Position the control module onto the base plate. Align the mounting holes and secure it using the provided screws or bolts. Ensure that the module is seated properly and that all connections are accessible.

Connect Wiring Harness:

Carefully connect the wiring harness to the control module. Ensure that all connectors are securely fastened and that there are no loose wires. Follow the color-coding or labeling on the connectors to ensure proper connections.

Make any final connections, including hydraulic lines or additional wiring, as specified in the service manual. Ensure that all connections are secure and free from leaks.
