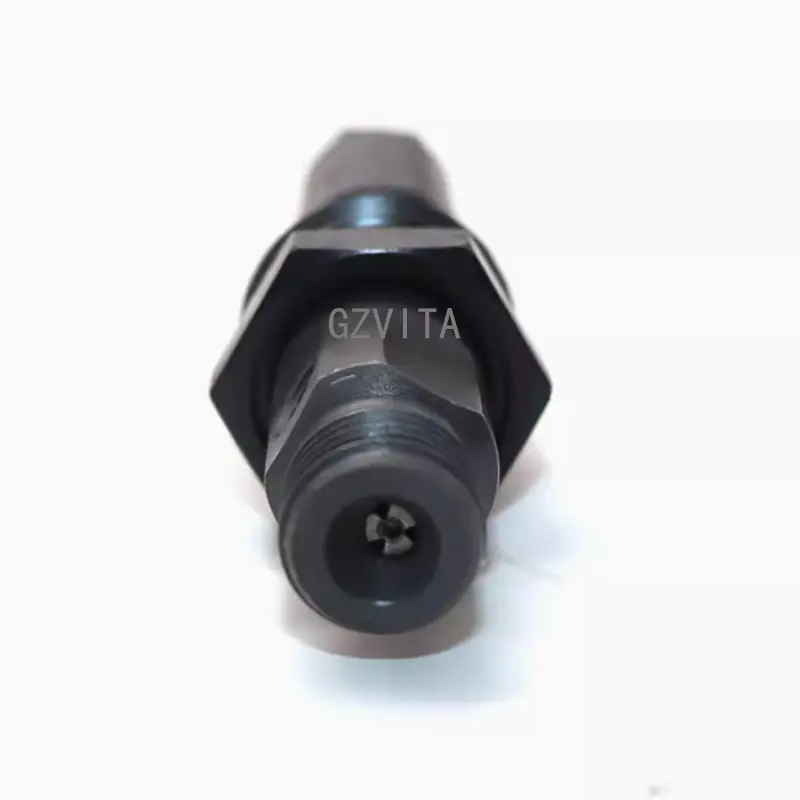

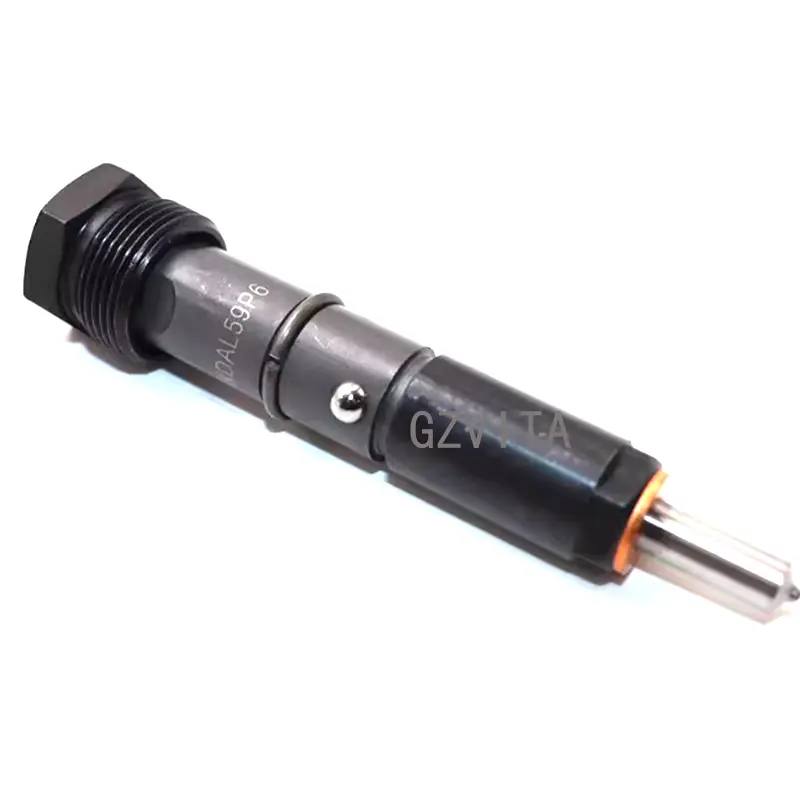

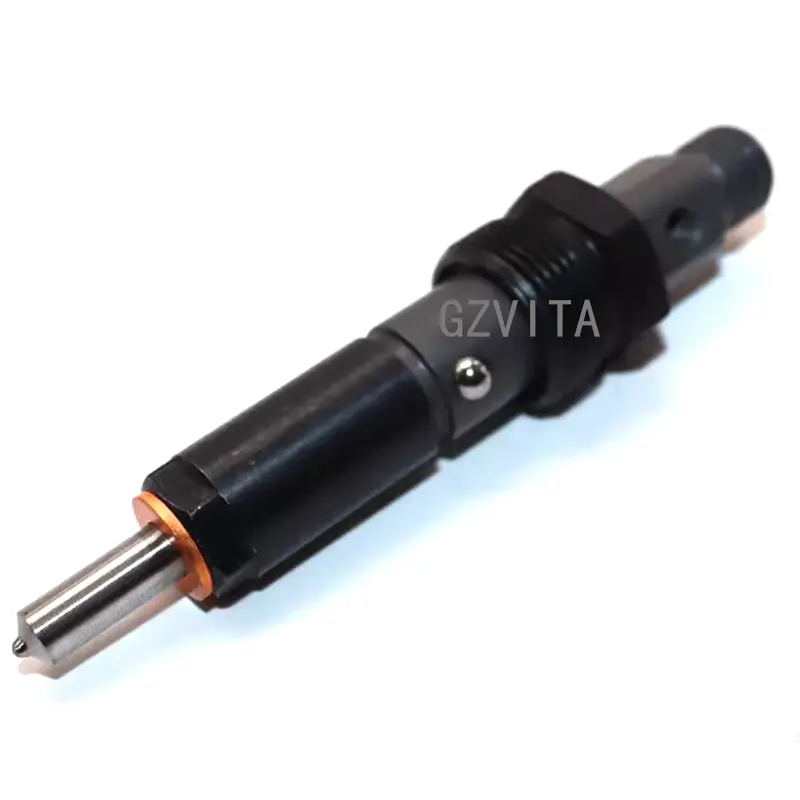

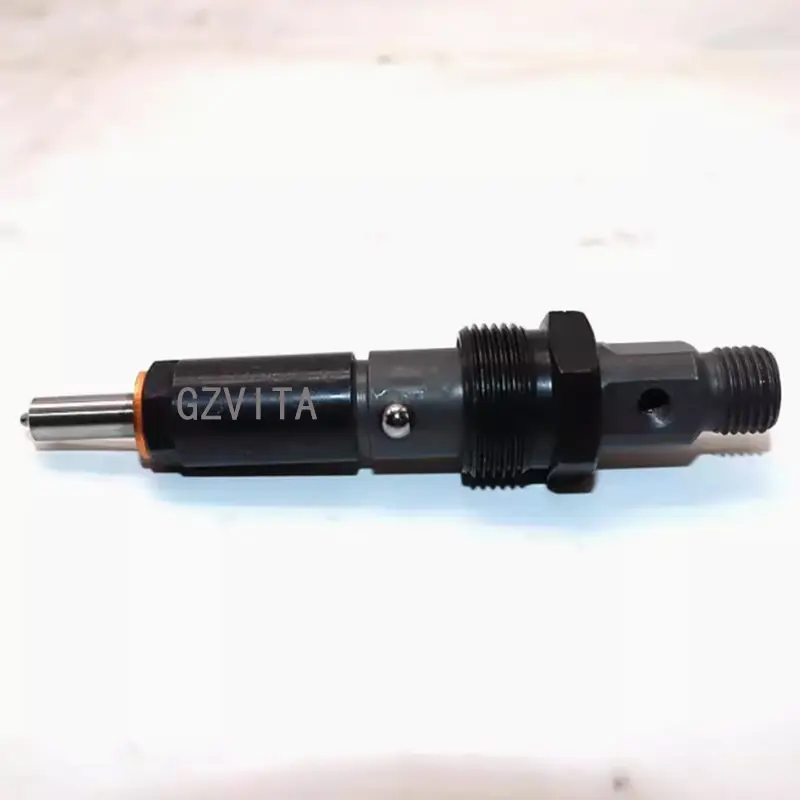

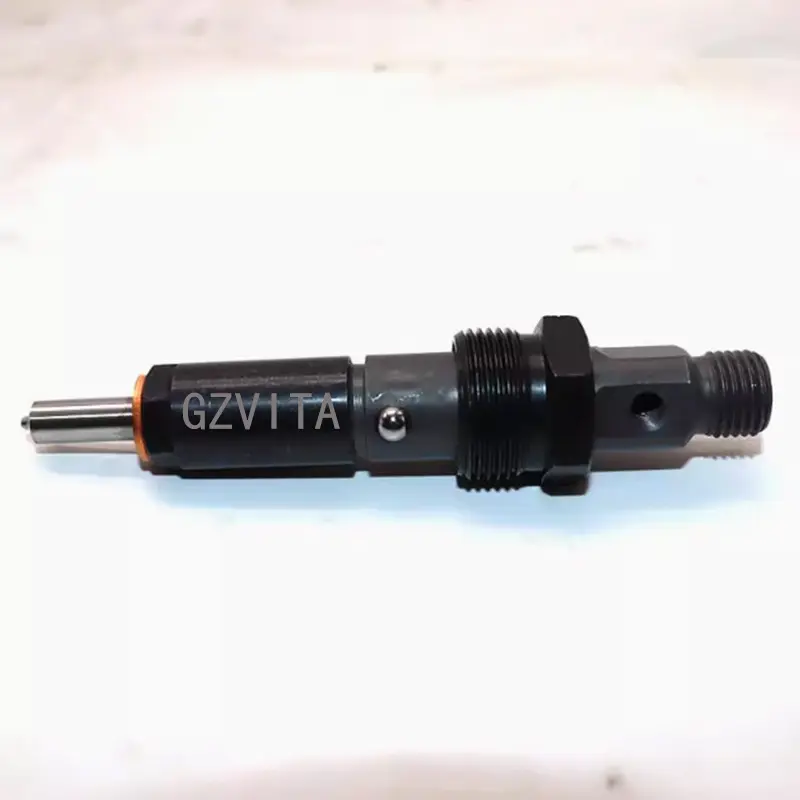

Fuel Injector Nozzle For Cummins B3.9 4D102 B5.9 6D102 Engine

Assembling a fuel injector nozzle on an engine requires careful attention to detail to ensure proper function and prevent leaks. Here are some tips for assembling a fuel injector nozzle:

Tips for Assembling Fuel Injector Nozzle

Ensure you have all the required tools (e.g., wrenches, torque wrench, injector puller) and parts (e.g., new O-rings, seals, and the injector nozzle itself) ready before starting.

Clean the Area:

Clean the injector mounting area on the engine to remove any dirt, debris, or old fuel residue. This helps prevent contamination and ensures a proper seal.

Inspect the Injector:

Before installation, inspect the fuel injector nozzle for any signs of damage or wear. Check the O-rings and seals to ensure they are in good condition and not cracked or hardened.

Lubricate O-rings:

Lightly lubricate the O-rings on the fuel injector nozzle with clean engine oil or a suitable lubricant. This helps them slide into place easily and prevents tearing during installation.

Align the Injector:

Carefully align the fuel injector nozzle with the mounting hole in the engine. Ensure that it is positioned correctly to avoid cross-threading.

Gently push the injector nozzle into the mounting hole. Avoid using excessive force, as this can damage the injector or the engine.

If the injector is held in place with bolts or clips, secure it according to the manufacturer’s specifications. Use a torque wrench to tighten the bolts to the recommended torque settings to avoid over-tightening, which can cause damage.

Connect Fuel Lines:

Reconnect the fuel lines to the injector, ensuring that they are properly seated and secured. Check for any signs of wear on the fuel lines and replace them if necessary.

Reconnect Electrical Connectors:

If the injector has an electrical connector, ensure it is properly connected. Check for any corrosion or damage on the connector pins.
